PT100 , PT1000 Temperature probe

The range of use of the temperature probes depends on the construction type manufactured and on the type of temperature probe used. By way of general information, it can be assumed that a pt100 temperature probe with direct output to the cable can operate between -50ºC and 250ºC depending on the cable type and on the measurements of the protection sleeve. In the case of temperature probes with connection head the most usual range covers -50ºC to 500ºC. It is always worth indicating the operating temperature for the purpose of choosing the most suitable construction and materials. As a guide, the most usual constructions are shown below, although in many cases they are described by the customer's own drawings and specifications.

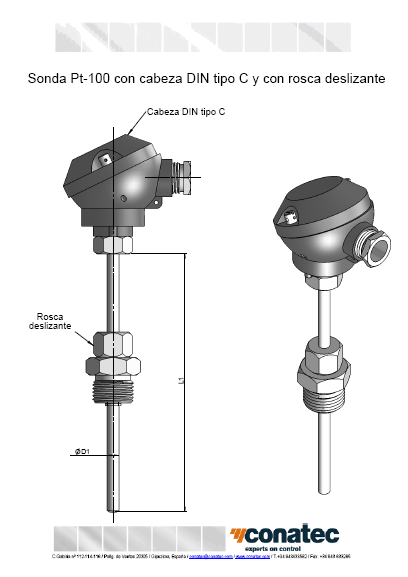

1.- Probe with DIN head type C and lead thread

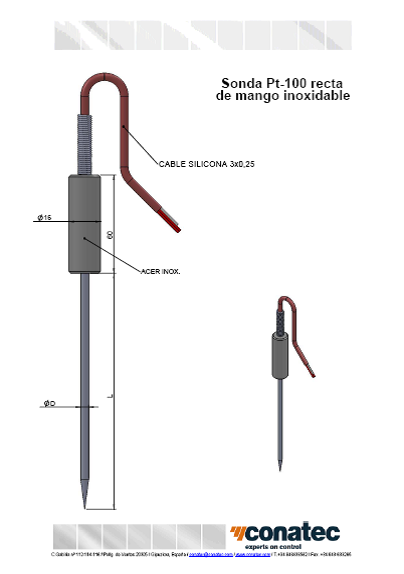

2.- Straight Pt-100 probe with stainless steel handle

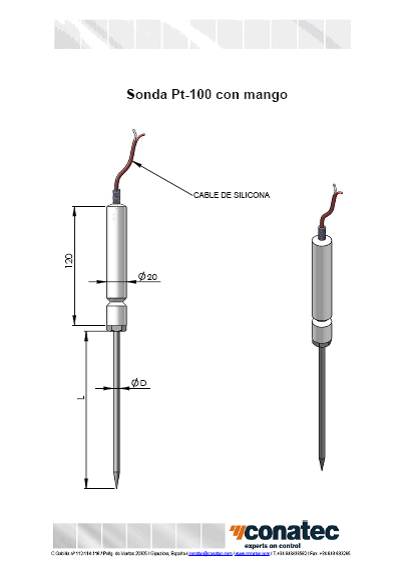

3.- Pt-100 probe with handle

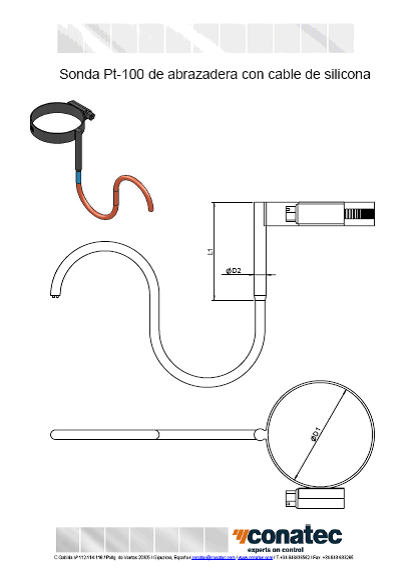

4.- Silicon cable clamp

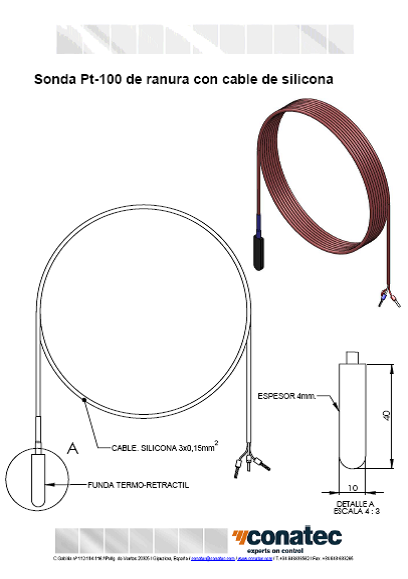

5.- Silicon cable groove

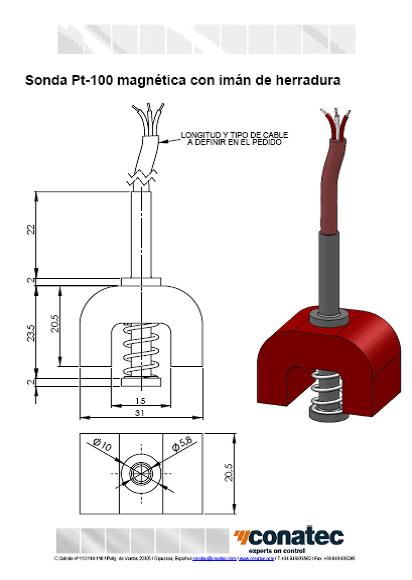

6.- Magnetic probe

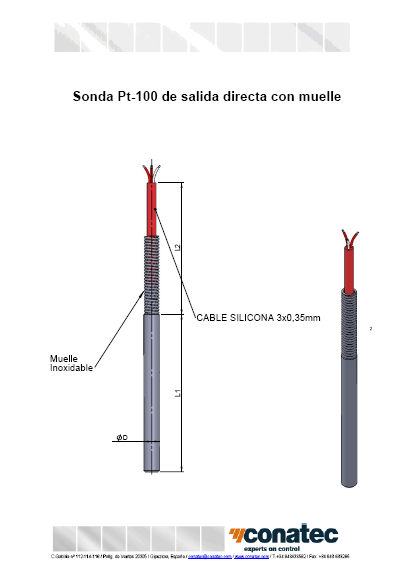

7.- Direct output Pt-100 probe with spring

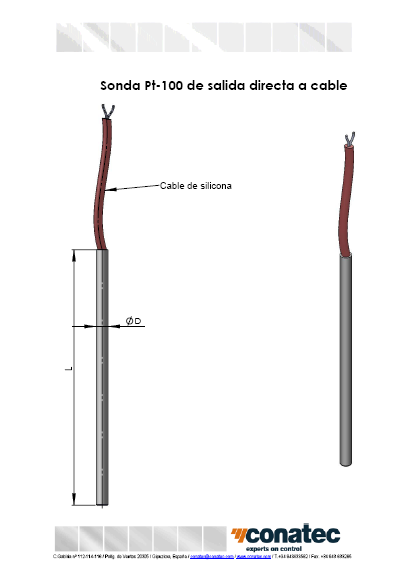

8.- Direct output to cable Pt-100 probe

9.- Pt-100 probe with lead thread

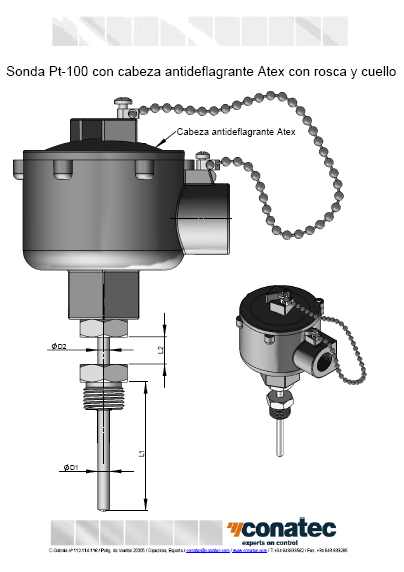

10.- Probe with flameproof Atex head with thread and neck

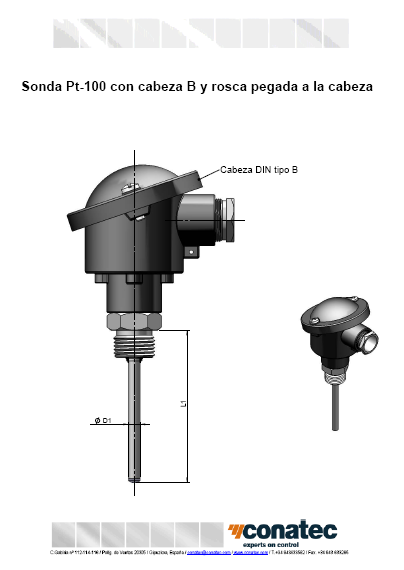

11.- DIN B head with fixed thread attached to the head

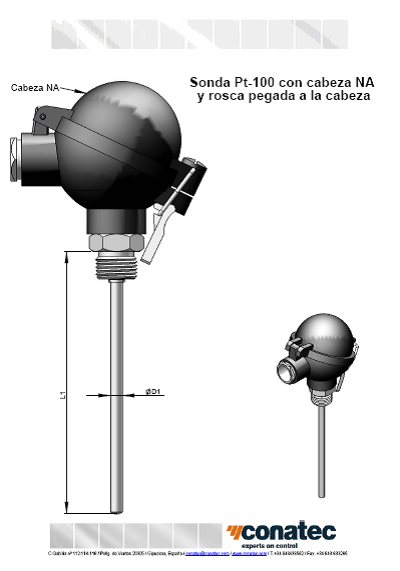

12.- NA head with thread attached to the head

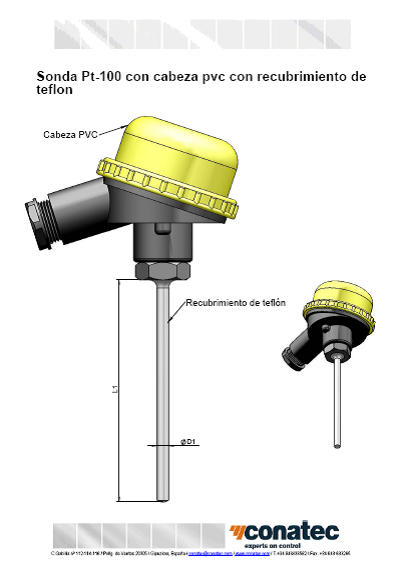

13.- Probe with PVC head with Teflon coating

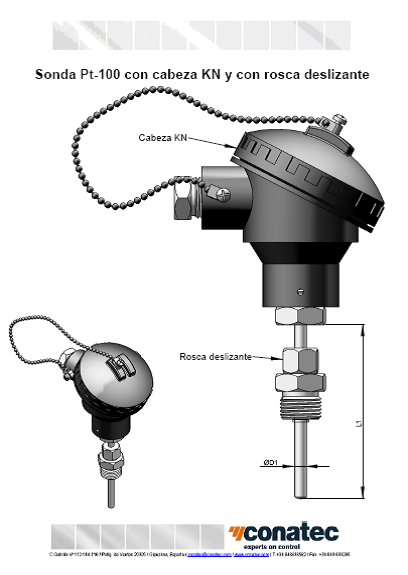

14.- Probes with KN head and lead thread

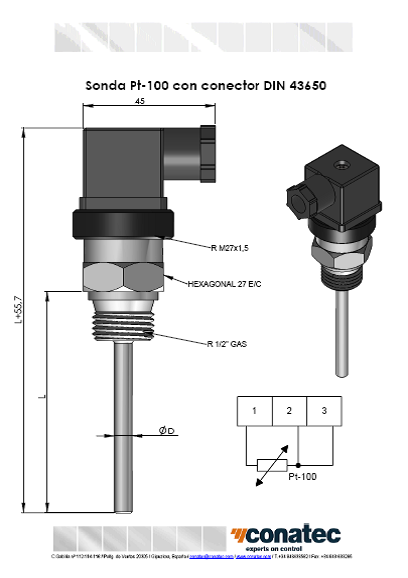

15.- Pt-100 probe with DIN 43650 connector

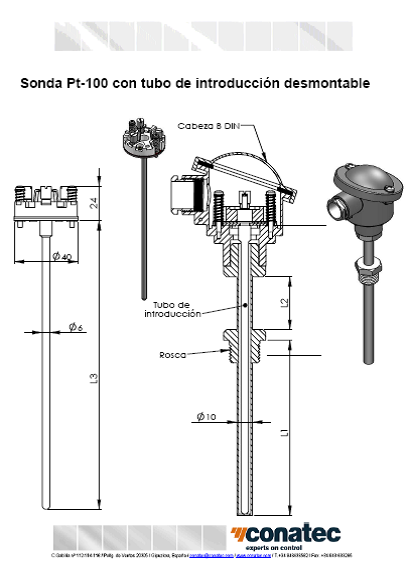

16.- Probe with insertion tube

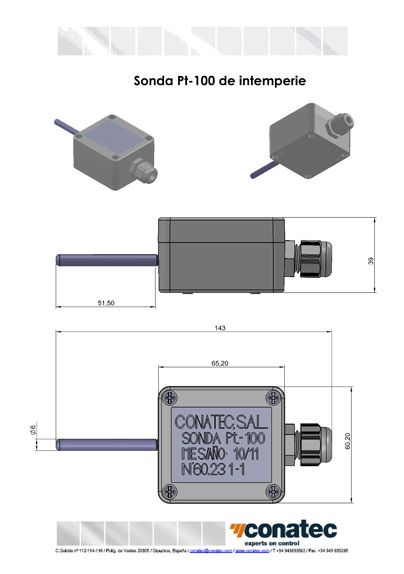

17.- Outdoors
18.- Part with silicon cable
19.- Part with Teflon cable

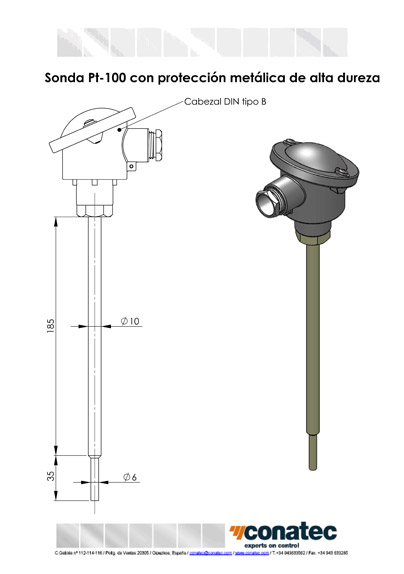

20.- Harshness Pt-100

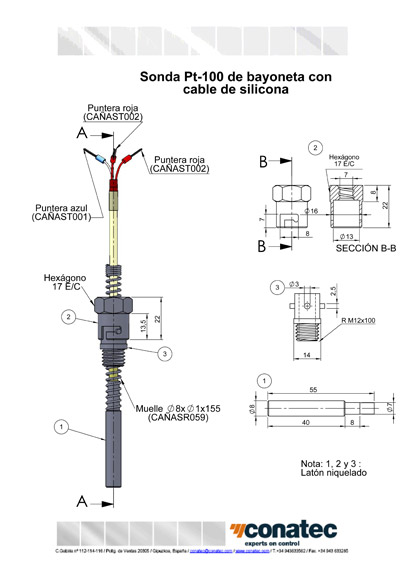

21.- Bayonet probe silicon cable

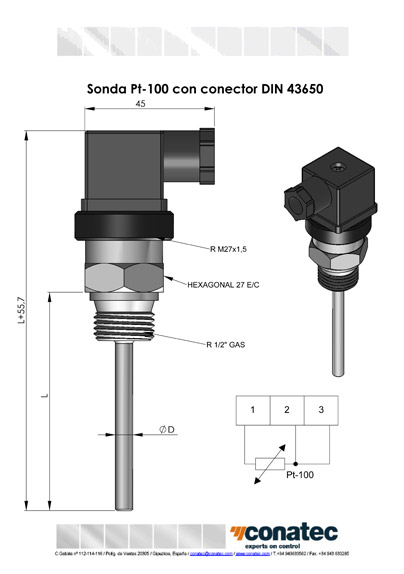

22.- Pt-100 probe with DIN 43650 connector

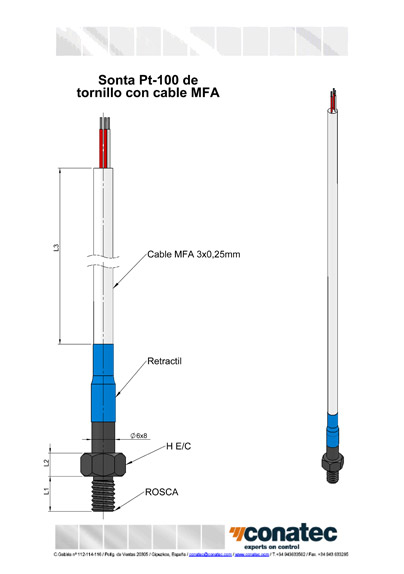

23.- Pt-100 screw probe with MFA cable

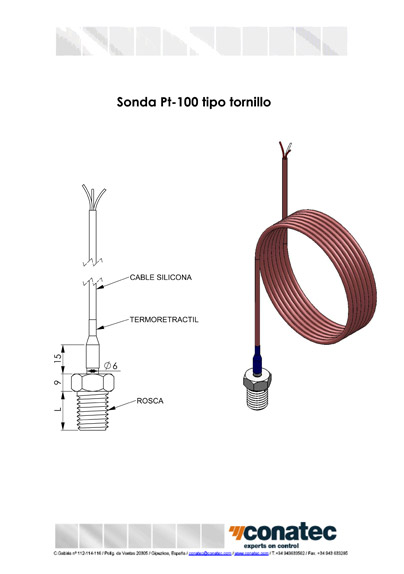

24.- Screw type Pt-100 probe
