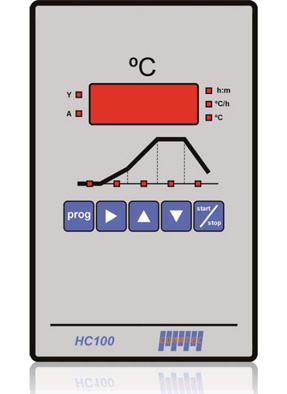

HC 100

Program regulator

Designed to be used in electric ovens which require simple programs

General Characteristics

  • Box or panel assembly.
  • Storage capacity for up to 9 programs, each made up by an optional waiting time, two controlled rise ramps, maintenance and a descent or cooling ramp.
  • A control output and a configurable alarm.
  • Permanent display of the temperature reading, the segment being performed, the state of the output control and the alarm.
  • Dynamic graph of the program execution.
  • Possibility to program the gradients in ºC/h or by temperature and time.
  • PID regulation or ON/OFF with adjustable hysteresis.
  • Indication of broken thermocouple.
  • Indication of power failure.
  • Indication of inverted thermocouple.
  • Configurable for K, S and R thermocouples.
  • Calculation of energy consumption.

Electrical

  • Power: 230VAC. +/-15%.
  • Consumption: 3VA.
  • Output controls with static relays 1A-24/230VAC.
  • Recommended operating temperature between 0 and 60ºC.
  • Relative humidity of operation between 0 and 80% without condensation.
  • EC standards.

Mechanical

  • Vertical format.
  • Dimensions 102x166x50mm.
  • Front protection once mounted IP54.
