J thermocouple

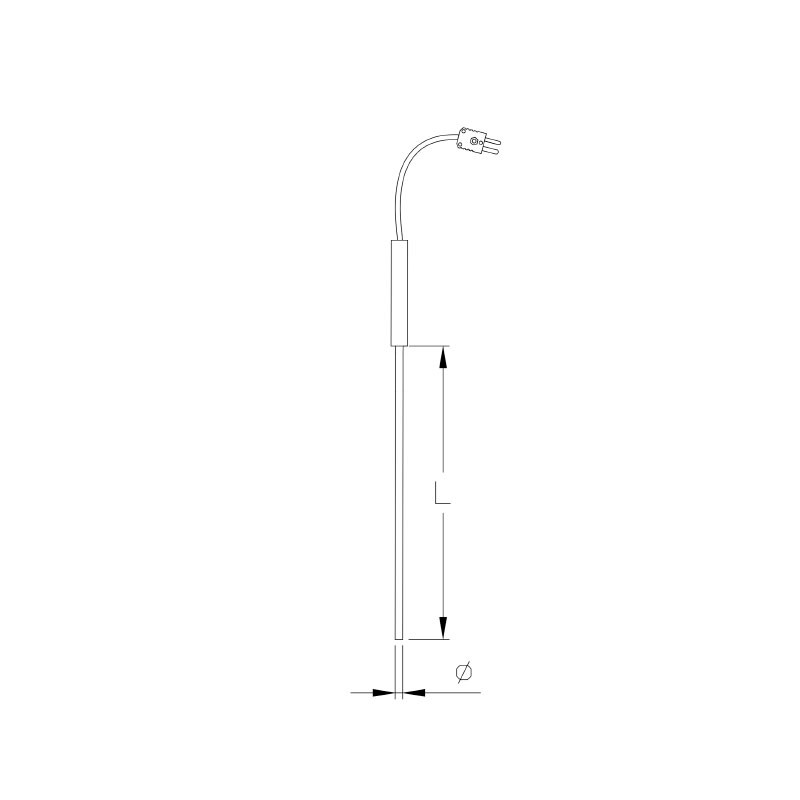

Sheathed thermocouple with pot seal and cable

This type of semi-rigid thermocouple, with pressed mineral insulation, allows for very small diameters, starting at 1.5 mm, which can be bent and deformed without loss of performance, adapting to any type of environment. It is complemented by a wide range of compensation cables and connectors


Download technical information
Ask about this product

Sensor Features

Sensor type
  • Single
  • Double
No. of threads
  • 2
  • 2x2
Tolerance
Class 1
Sensor
J

Accessoires

Connector
Standard
Overhead converter
  • 4-20mA
  • 0-10V

Protective Sheath

Material
  • Stainless steel
  • Other
Diameters
  • 1.5 mm
  • 3 mm
  • 4.5 mm
  • 6 mm
  • 8 mm
Length
  • From 30mm
  • Up to 3000mm

Process Connection

Material process
Ertacetal
Thread
Fixed thread
Process type
  • BSP (GAS)
  • NPT
  • RM

Cable

Isolation
  • PVC
  • Silicone
  • Teflon
  • Metal mesh
  • Fibreglass
No. of drivers
  • 2
  • 4
