J thermocouple

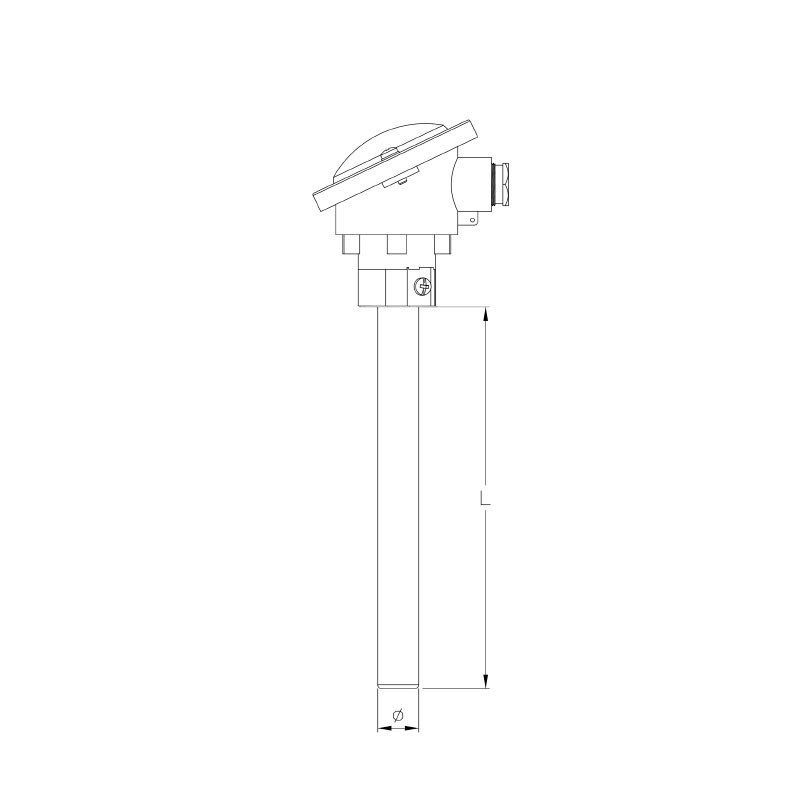

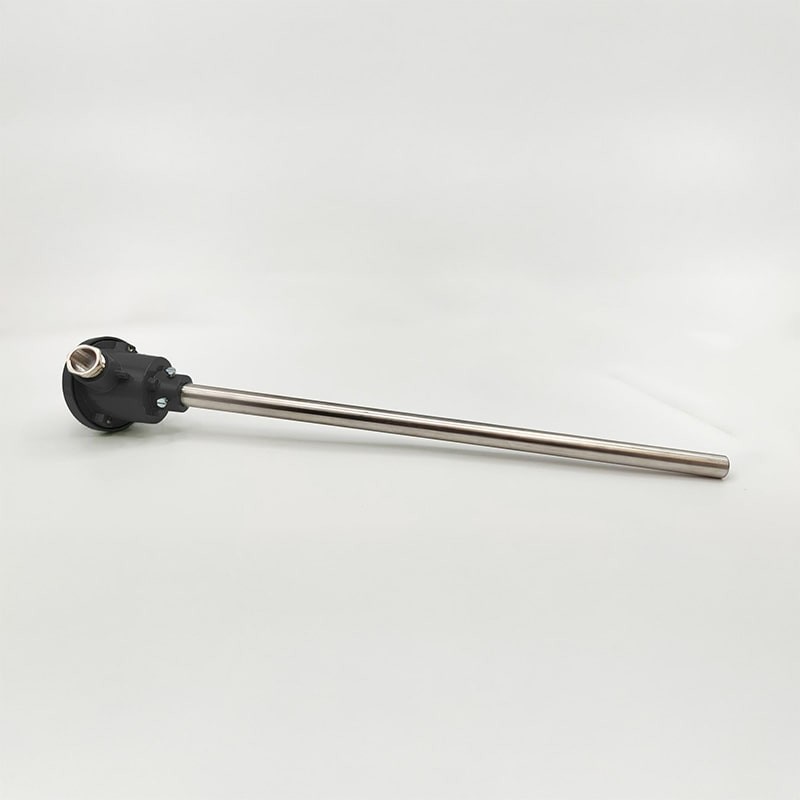

Thermocouple with metal protection

The metal-sheathed thermocouple is used for high-precision temperature measurement in industrial applications, ensuring fast and repeatable response in demanding environments.


Download technical information
Ask about this product

Sensor Features

Sensor type
Single
No. of threads
  • 2
  • 2x2
Tolerance
Class 1
Sensor
J

Electrical Connection

Electrical Connector
* Other constructions on request
Head
  • DIN A
  • DIN B
  • KN
  • KS
  • ATEX
Cable gland outlet
  • RM20x1.5
  • RM16x1.5
  • PG16

Accessoires

Connector
Standard
Overhead converter
  • 4-20mA
  • 0-10V

Protective Sheath

Material
Stainless steel
Diameters
  • 6 mm
  • 8 mm
  • 10 mm
  • 12 mm
  • 14 mm
  • 15 mm
Length
  • From 30mm
  • Up to 3000mm

Process Connection

Material process
  • Stainless steel
  • Brass
  • Ertacetal
  • Aluminium
Thread
Fixed thread
Process type
  • BSP (GAS)
  • NPT
  • RM
