K thermocouple

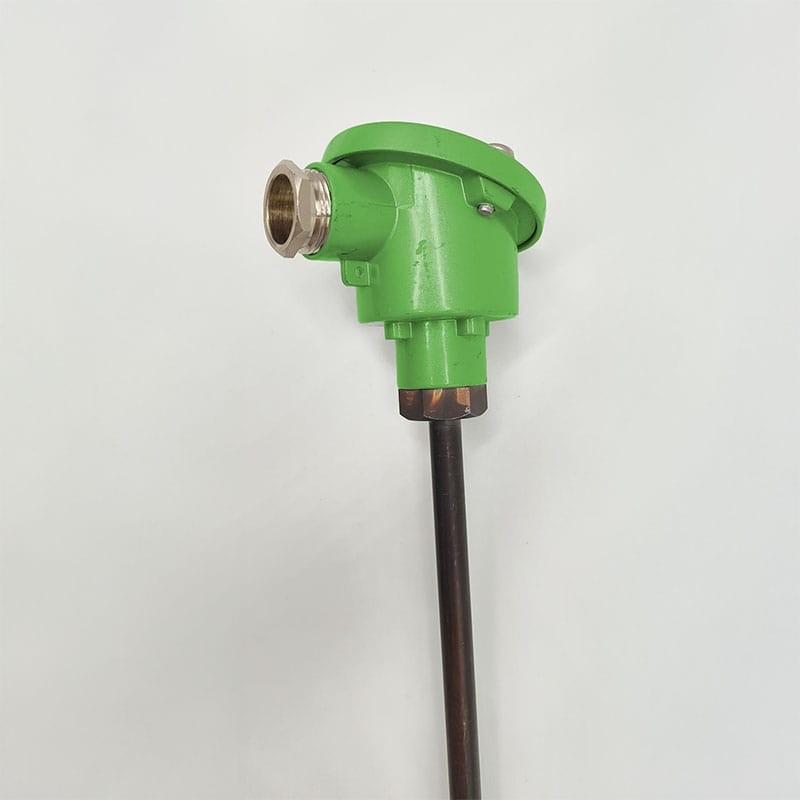

High hardness thermocouple

The high-hardness thermocouple is a sensor specialy designed to work in highly abrasive environments. It offers fast and accurate response in extreme conditions, making it ideal for the mining and construction industries, asphalt plants, and mining equipment.


Download technical information
Ask about this product

Sensor Features

Sensor type
  • Single
  • Double
No. of threads
  • 2
  • 2x2
Tolerance
Class 1
Sensor
K

Electrical Connection

Electrical Connector
  • 4 poles
  • RM12x1
Head
DIN B
Cable gland outlet
RM20x1.5

Accessoires

Overhead converter
  • 4-20mA
  • 0-10V

Protective Sheath

Material
  • Stainless steel
  • High hardness

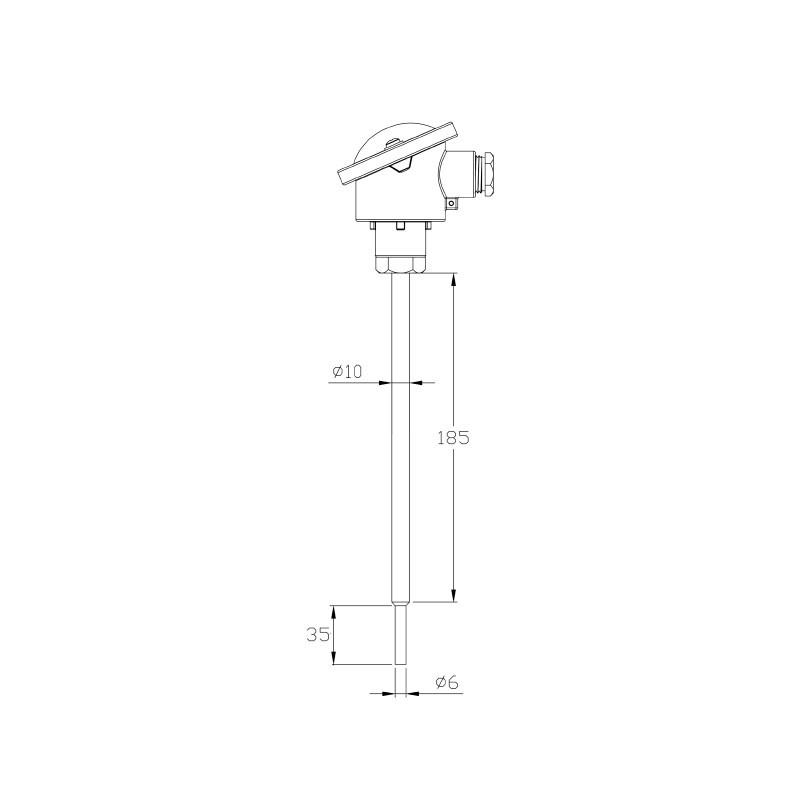

Diameters
  • 6 mm
  • 10 mm
Length
  • From 35mm
  • Up to 185mm

Process Connection

Material process
Stainless steel
Thread
  • Fixed thread
  • Sliding thread
Process type
  • BSP (GAS)
  • NPT
  • RM
