R thermocouple

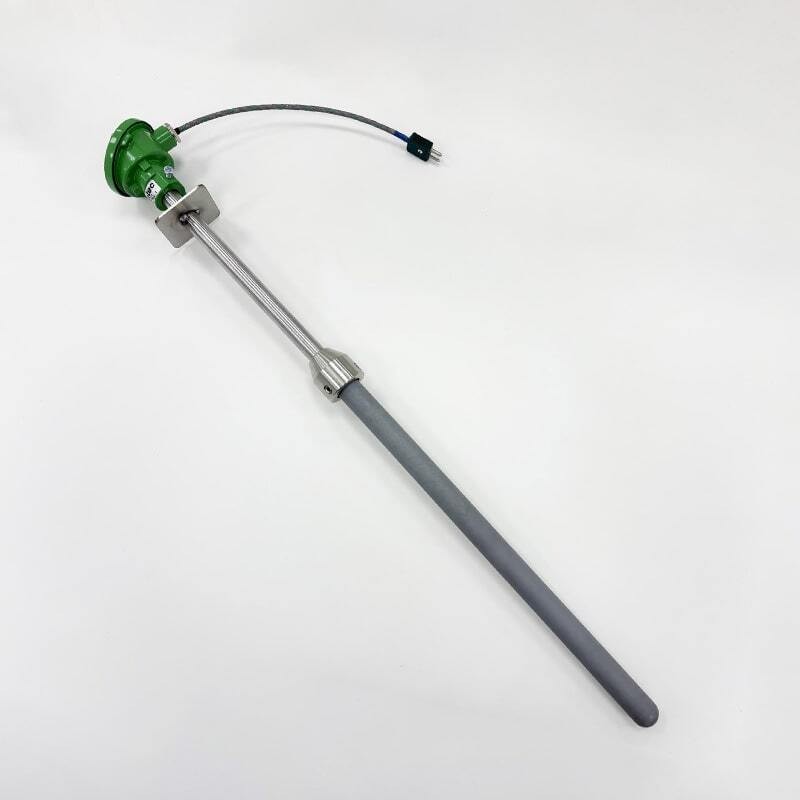

Thermocouple for melting non-ferrous metals

This family of thermocouples is specially designed for melting non-ferrous metals such as aluminum, bronze, copper, nickel, zinc, or zamak. They can be manufactured straight or angled to suit different types of industrial crucibles.


Download technical information
Ask about this product

Sensor Features

Sensor type
  • Single
  • Double
  • Straight
No. of threads
  • 2
  • 2x2
Tolerance
Class 1
Sensor
R

Electrical Connection

Head
  • DIN A
  • KN
  • ATEX
Cable gland outlet
  • RM20x1.5
  • RM16x1.5
  • PG16

Bushing

Bushing diameter
  • 20 mm
  • 21.3 mm
  • 26.9 mm
  • 30 mm
Material Bushing
  • AISI-316
  • AISI-310
  • AISI-446
Bushing Length
  • From 100mm
  • Up to 1000mm

Accessoires

Overhead converter
  • 4-20mA
  • 0-10V

Protective Sheath

Material
  • Sialon
  • Silicon Carbide
Diameters
  • 28 mm
  • 44 mm
  • 52 mm
Length
  • From 400mm
  • Up to 1067mm
Type
Simple
