B thermocouple

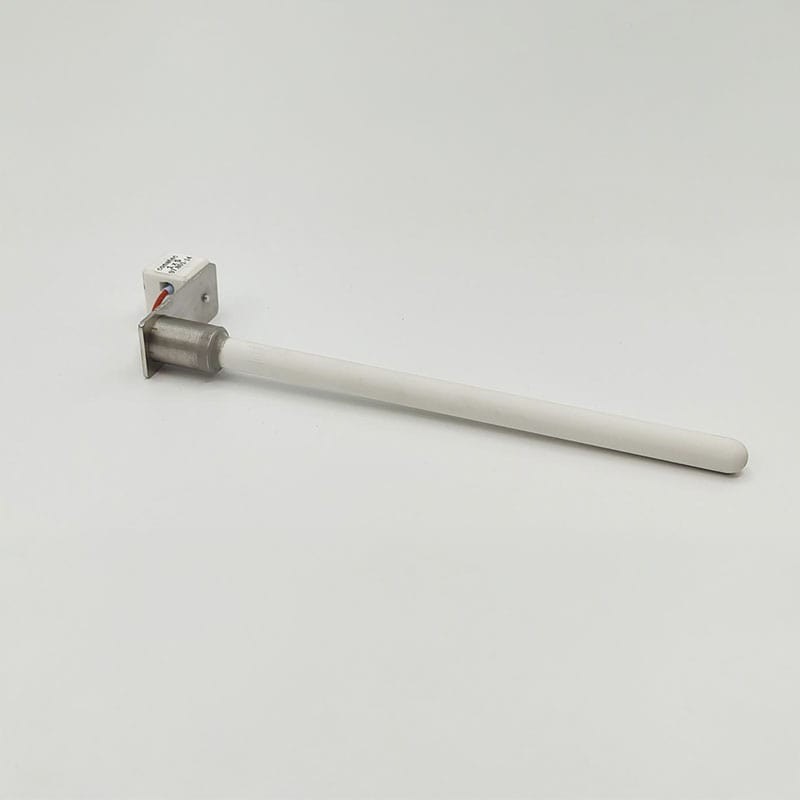

Thermocouple with ceramic connector

The thermocouple with ceramic connector is a temperature sensor specificaly designed for measuring temperatures in ceramic, glazing, glass, and precious metal furnaces.


Download technical information
Ask about this product

Sensor Features

Sensor type
  • Single
  • Double
No. of threads
  • 2
  • 2x2
Tolerance
Class 1
Sensor
B

Electrical Connection

Head
Ceramic connector

Bushing

Bushing diameter
  • 12 mm
  • 15 mm
Material Bushing
Stainless steel
Bushing Length
From 20 mm

Protective Sheath

Material
Ceramics,Ker 610
Diameters
  • 8 mm
  • 10 mm
Length
  • From 50mm
  • Up to 500mm
Type
Simple
