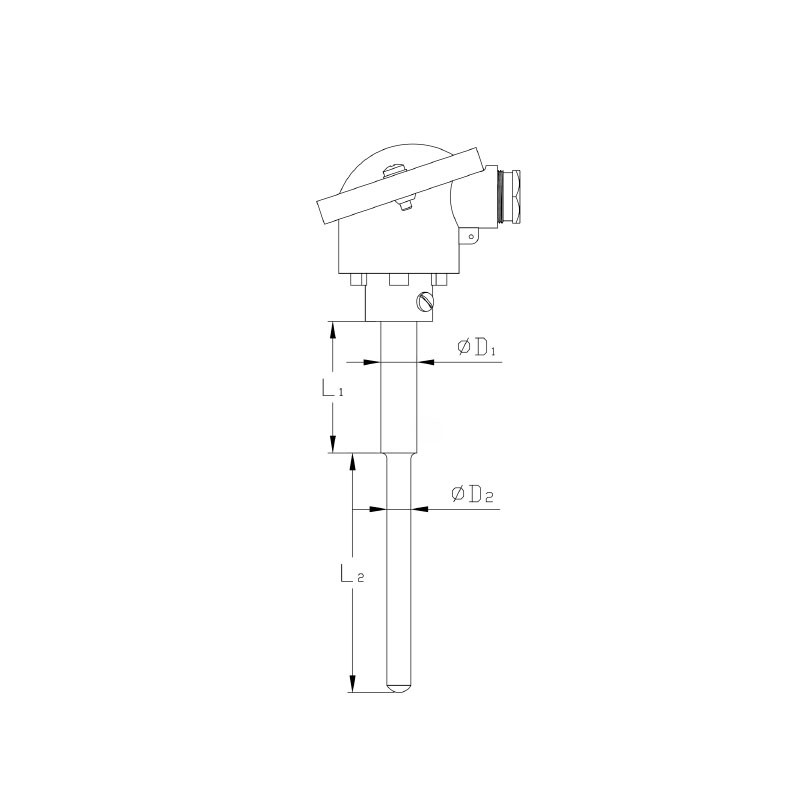

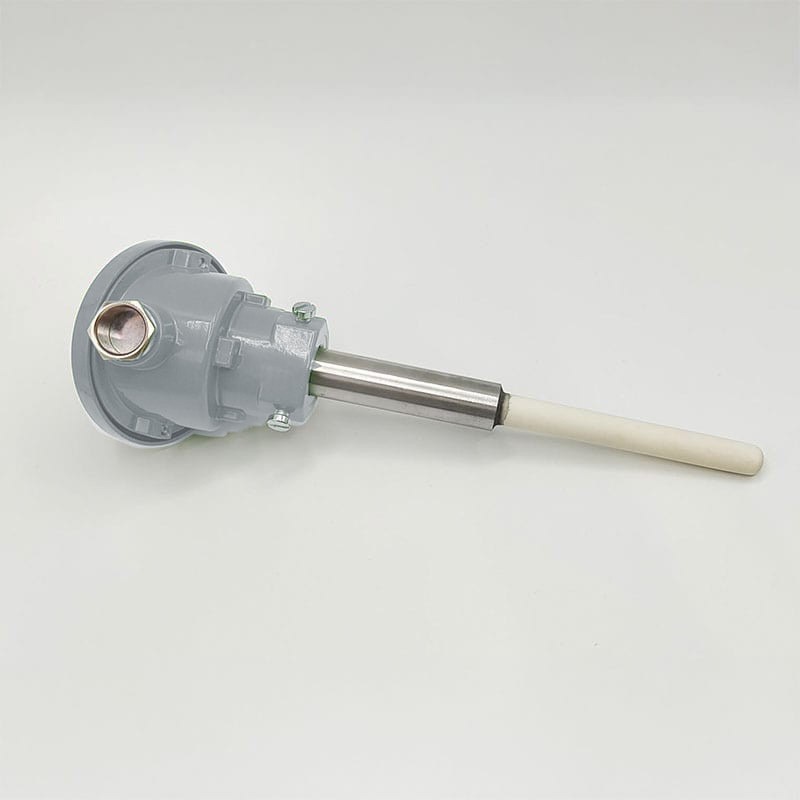

Thermocouple with ceramic protection

The ceramic-protected thermocouple is used to measure high temperatures up to 1700°C. It is ideal for monitoring temperatures in furnaces, boilers, the metallurgical industry, foundries, heat treatment and high-temperature manufacturing processes, as well as in quality control systems and research laboratories.



Sensor Features

Sensor type
  • Single
  • Double
No. of threads
  • 2
  • 2x2
Tolerance
Class 1
Sensor
B

Electrical Connection

Electrical Connector
  • 4 poles
  • RM12x1
Head
  • DIN A
  • DIN B
  • KN
  • ATEX
Cable gland outlet
  • RM20x1.5
  • RM16x1.5
  • PG16

Accessoires

Overhead converter
  • 4-20mA
  • 0-10V

Protective Sheath

Material
  • Stainless steel
  • Ceramics,Ker 610
  • Ceramics,Ker 710
Diameters
  • 8 mm
  • 10 mm
  • 15 mm
  • 24 mm
Length
  • From 50mm
  • Up to 1500mm

Process Connection

Material process
  • Stainless steel
  • Aluminium
Thread
  • Fixed thread
  • Flange
